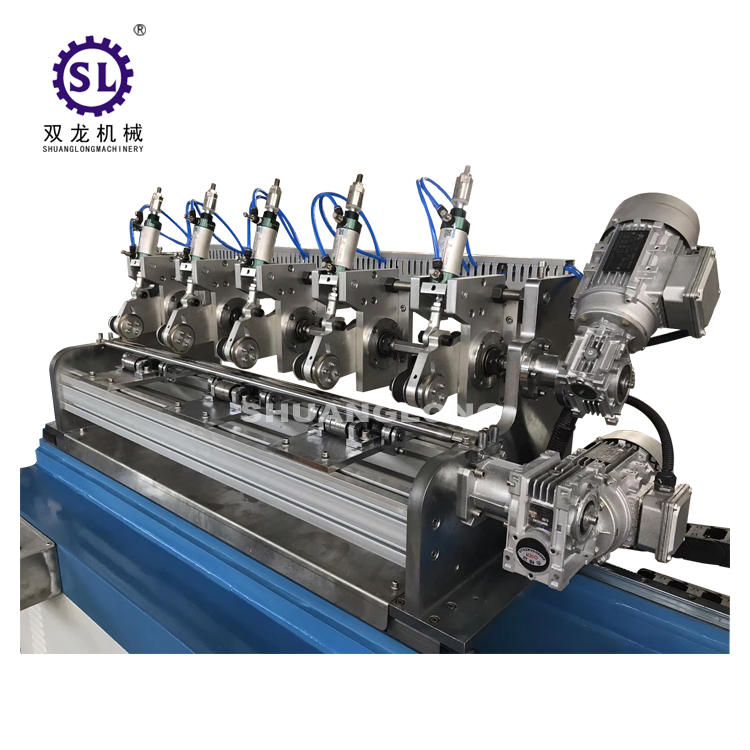

Biodegradable drinking paper straw making machine

Brand Name : SL

Model Number : SLXG

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Price negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5SETS/MONTH

Delivery Time : 30 days after got deposit

Packaging Details : Export Standard Packing

Product type : Paper straw machine

Power : 2.2KW

Reel diameter : 5-30mm

Roll thickness : 0.3-2.5mm

Winding head : 2 head

Warranty : 1 Year

Contact Now

Biodegradable drinking paper straw making machine

Product Application

Suitable for small diameter (5-12mm) paper tube production, such as paper straw, pen tube.

Quick Details

1. Adopted man-machine control interface, touch screen parameters setting, easy operating.

2. Controlled by encoder, driven by servomotor.
3. Automatic and high efficiency. 150-225 pcs straws /min.
4. Winding by belt and tension device adjusted by handle wheel.
5. Select and use famous brand suppliers for motor and electrical equipment.
6. Thermal/heat treatment frame to remove internal stressfor longer service life.

Technical parameter		Technical parameter
Paper layer	2-5 layers	Electric machinery	Shanghai
Inner diameter	4-12mm	Interface	Schneider
Thickness	0.3-1mm	Inverter	4kw schneider
Speed	0-55m/min	Actuating element	schneider
Cutting length	120-1050mm	Signal elecment	OMCH
Way of gluing	Single/double side	Pneumatic	Air TAC
Fixed length	Encoder	Electrical components	schneider
Operator	1-2 person	Servomotor	1kw schneider
Speed control	Pole free speed	Moving screw rod	ABBA Taiwan
Power supply	380v/ 3phase/ 50hz	Moving block	ABBA Taiwan
Blade	6 driven blades	Main part dimension	5600x1600x1750mm
Glue method	Three layer spray type	Overall Dimension	8000x6000x1800mm
Weight	1200kgs
